EVOLVE RENEGADE DIABLO
EVOLVE RENEGADE DIABLO
Meet the new Renegade Diablo, crafted for the true off-road adventurer. This board offers more speed with a max of 50 km/h and dual 6374 3500W (7000W) brushless motors, providing unparalleled power. With a range of up to 50 km on pneumatic tyres, you'll never have to worry about range anxiety. The new eFOC 2.0 Motor Controller increases current draw by 20%, delivering more torque at speed and ensuring the ultimate ride.

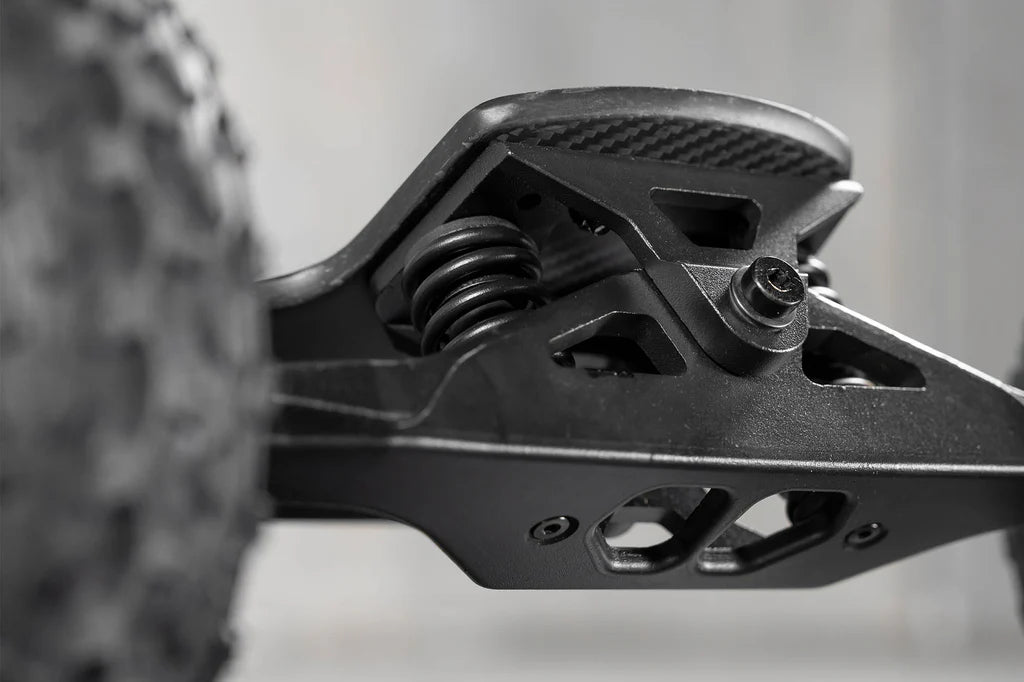

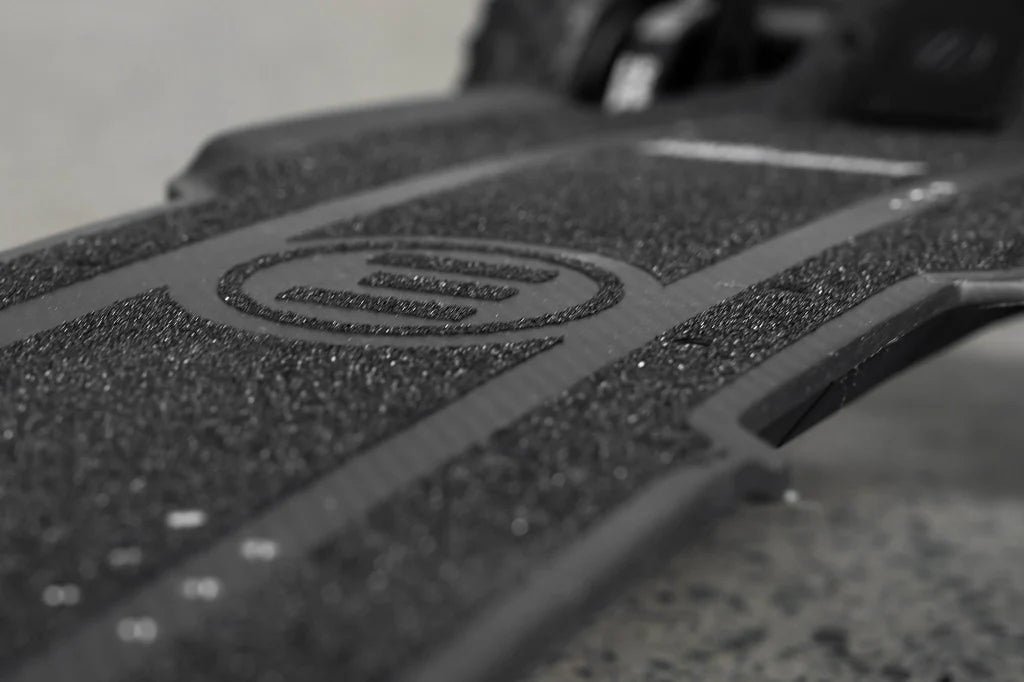

The Renegade Diablo's deck, made from solid carbon fibre, showcases Evolve's innovative design, combining robust strength with perfect flexibility for extreme riders. Equipped with new suspension trucks called “Renegade Forged,” these trucks are designed and built for maximum strength. Built-in binding hole inserts and Evolve Bindings (sold separately) transform this board into an off-road beast, ready to conquer new limits.
SPECS:
DECK MATERIALS: | Carbon fibre |
DECK LENGTH: | 95cm (37.4 inches) |
WHEEL BASE: | 96.5 cm (38 inches) |
TRUCKS: | Evolve Renegade trucks - Forged/CNC. 39cm (15.5 inch) width, 8mm axles |
WHEELS: | Evolve 175mm (7 inch) pneumatic tyres - Evolve all-terrain hubs |
MOTOR: | Dual 6374 3500w rated (7000w Total) custom brushless sensored motors |
MOTOR CONTROLLER / ESC: | EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection. |
BEARINGS: | Evolve Stainless Steel Ball Bearings |
BATTERY: | 43.2v - 864WH - 20AH - Samsung 50S |
RECHARGE: | 4 hrs |
REMOTE: | Evolve Phaze remote with CNC aluminium-reinforced body |
WEIGHT: | 16.4 kg (36lbs) |
RANGE: | Up to 50km (31 miles) |
TOP SPEED: | 50km/h (31 mph) |
MAX LOAD: | 120kg / 265lb |
SUITABLE TERRAIN: | Short grass, dirt, gravel, roads and footpaths |
SLIDES: | Off road yes, not recommend on sealed surfaces |
HILLS: | 45% + |
BRAKING: | FOC regenerative braking, adjustable brake and acceleration curves |
AESTHETICS: | Tough mountain board look and feel with a medium flex Carbon fibre deck |
LIGHTS: | Front and rear LED lights. User-customisable control via remote and Evolve app. |
BINDINGS: | Optional fitment |
