FOIL DRIVE MAX KIT

FOIL DRIVE GEN 2 ASSIST MAX

The Assist MAX is exactly that, an all rounder with maximum power, runtime, thrust and versatility. This is the largest Foil Drive suitable for any rider at any skill level! Three years of design, testing and development has brought us here, to the original hybrid dream; ride any board, any foil, any way you like.

With the experience and community backing we have grown and developed over the last few years, Foil Drive as a brand and a product is coming of age, and ready to enhance the foiling experience forever

Max Thrust:27.5kg (60.6lbs)

Weight Range:3.4 - 4.5kg (7.4 - 9.9lbs)

Max Dimensions:L525 x W250 x H50mm \nMin Dimensions:L415 x W250 x H50mm

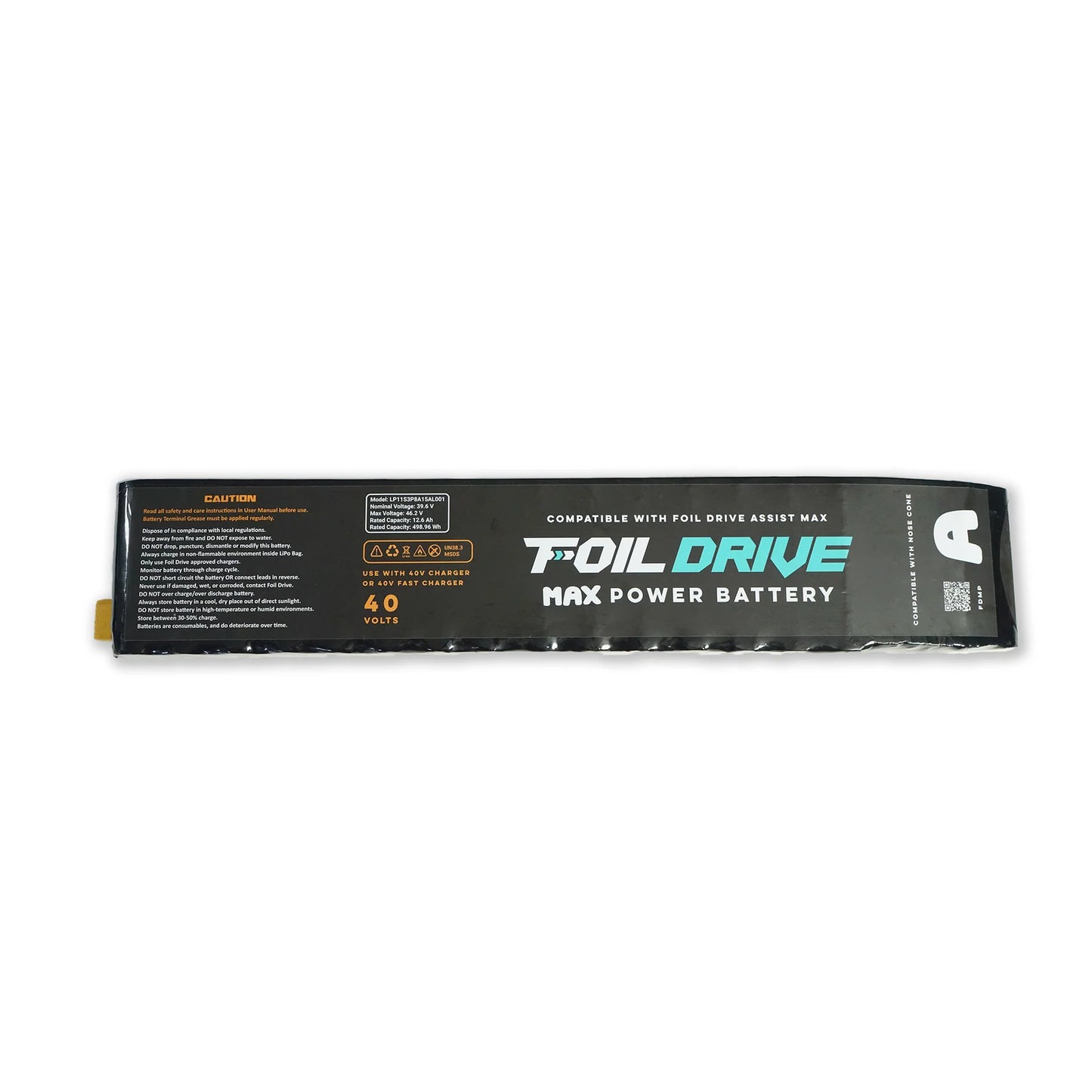

The Foil Drive MAX Power Battery is the largest battery with 498 Wh capacity. This offers the longest run time with for those looking for high power performance.

As with all Gen 2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust. The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

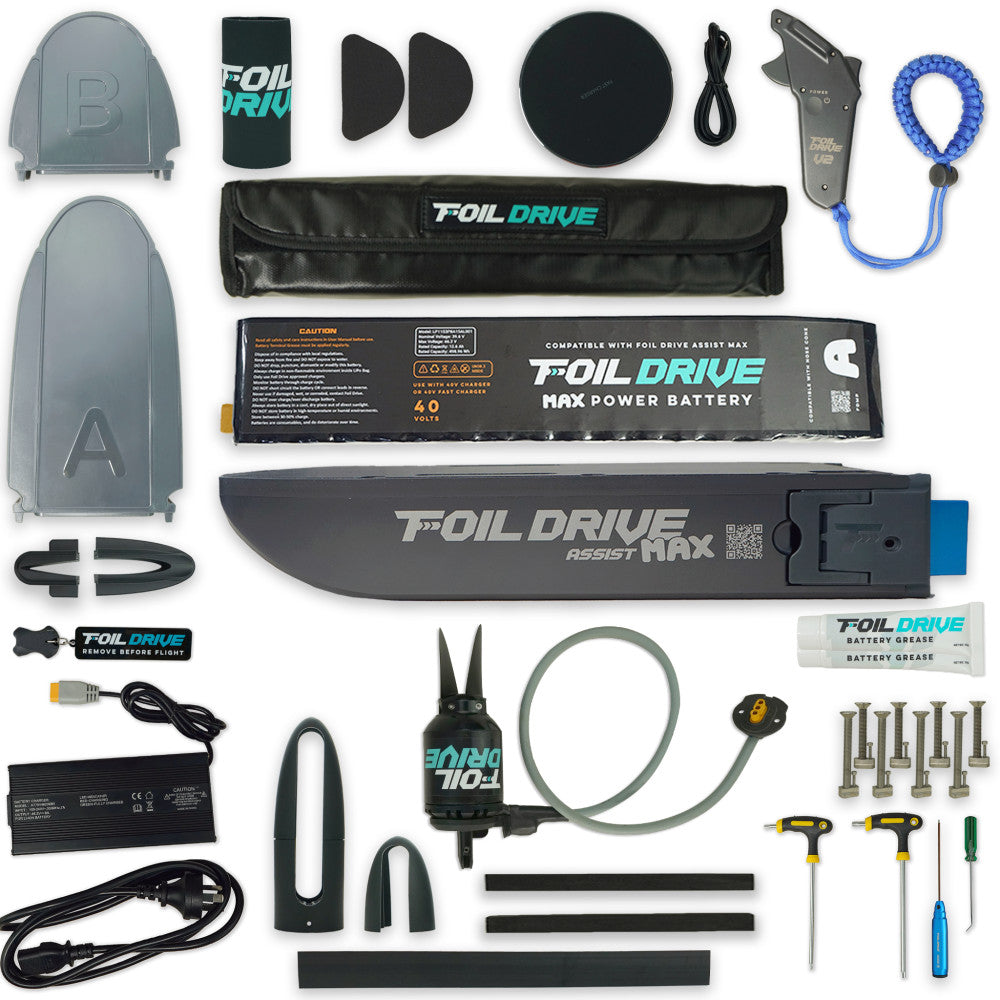

Foil Drive Max Gen 2 supplied with :

Battery

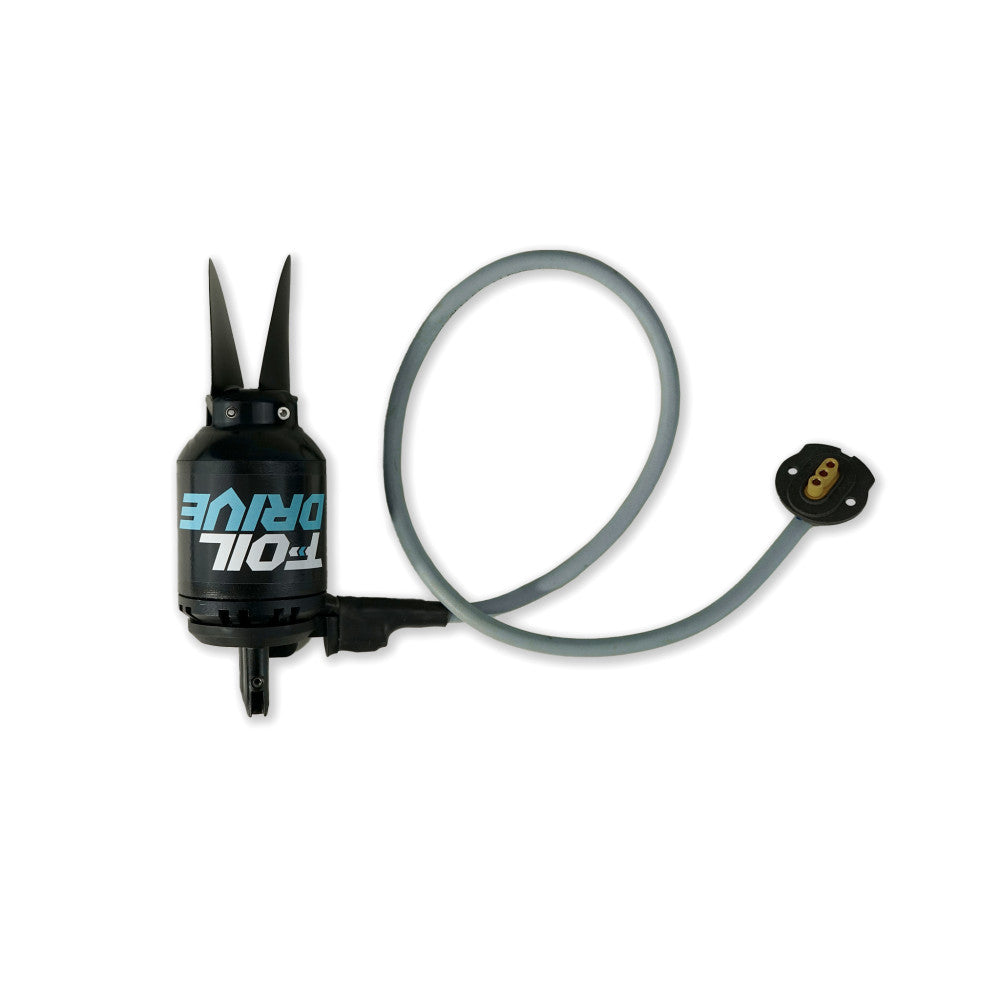

Choice of Cable length with Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler

Choice of Mast Adaptor *Now with Multi Adaptor*

Foil Drive Assist MAX Electronics Box

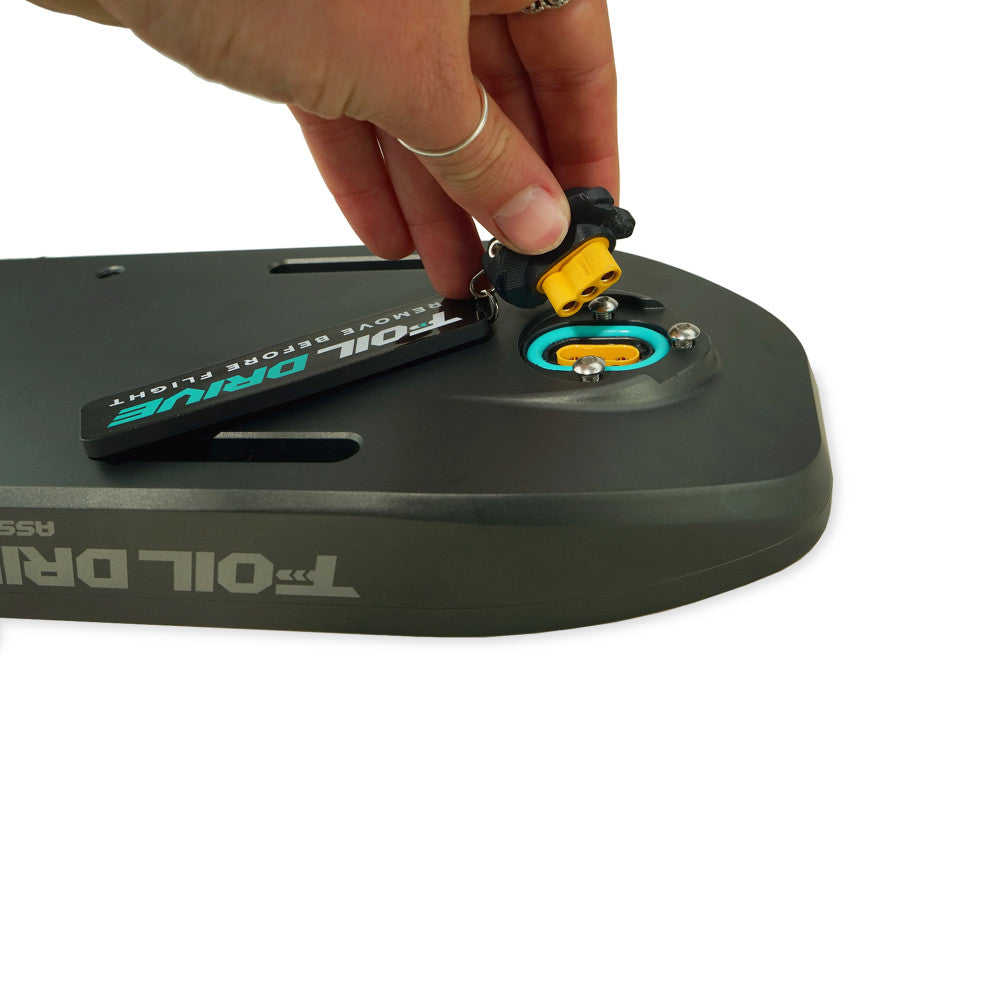

Motor Plug Protector with Keychain

Foil Drive Nose Cone A

Foil Drive Nose Cone B

Foil Drive Universal Motor Pod - Rear

Foil Drive Universal Motor Pod - Short Nose

Foil Drive Universal Motor Pod - Long Nose

Foil Drive v2 Wireless Throttle Controller

Foil Drive Controller Wrist Strap

Foil Drive Mast Cable Guide 23cm

Foil Drive Controller Wireless Charge Pad

Micro USB Cable

40v Standard Foil Drive Charger 4amp

4x Mast Track Foam Inserts

2x Nose Cone Rocker Pad

2x Battery Grease

4x M8 Assist MAX Mast Plate Bolts 80mm

4x M6 Assist MAX Mast Plate Bolts 80mm

Foil Drive 2.5mm Driver

Torx T40 Tee Handle Driver

Torx T30 Tee Handle Driver

Foil Drive Cleaning Cloth

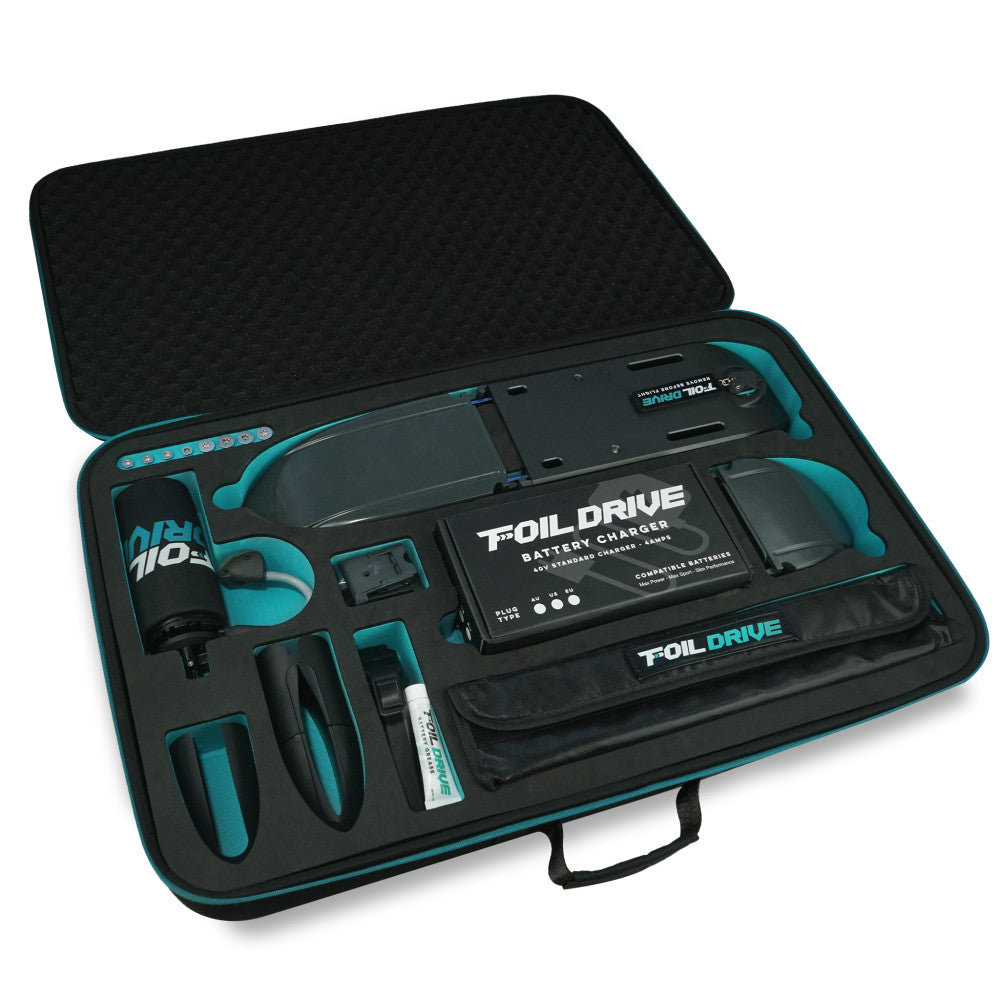

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag -

- 4x M8 Locking Tee Nuts

- 4x M6 Locking Tee Nuts

• 4x M3 x 20mm Bolts for Locking Tee Nuts
• 2x M3 x 16mm Latch Locking Bolts
•  Foil Drive Motor and Pod Bolts Bag
• - 4x Motor Pod Bolts (M3 x 12mm)
• - 3x Puck Bolts (M3 x 12mm)
• - 3x Motor Plug Bolts (M4 x 10mm)
• Spare Parts Bag
•  - 2x O-Ring Seals - Foil Drive Assist MAX
• - 2x Latch Assembly - Foil Drive Assist MAX
• - 3x Motor Plug Bolts (M3 x 12mm)
• - 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
• - 2x Latch Locking Bolts (M3 x 16mm)
• - 2x Propeller Bolts (M3 x 30mm)
• - 2x Latch Pivot Bolts (M3 x 45mm)
• More info at https://foildrive.com.au/collections/kits/products/foil-drive-assist-max
