How to Replace Kite Pump Valve and Stop Leaks

That slow hiss halfway through pumping up is a proper session killer. If you need to replace kite pump valve components, do it before the next sea breeze arrives - a tiny leak at the pump can turn a quick rig into an arm-burning battle and leave you guessing whether your kite is actually at riding pressure.

The good news is that most kite pump faults are straightforward once you identify which valve is leaking. The tricky part is that riders use “pump valve” to describe a few different pieces: the one-way valve inside the pump outlet, the hose-end fitting, the inflation adapter, or even the valve on the kite itself. They are not interchangeable, and buying the wrong piece is an easy way to waste a good windy afternoon.

First, find the leak before replacing a kite pump valve

Set your kite aside and test the pump on its own. Cover the outlet with a finger, pump slowly and listen. Air escaping around the hose connection points to a loose collar, damaged O-ring or split hose. Air flowing back through the pump when you stop the downstroke usually points to a worn internal non-return valve. If the pump holds air but leaks only when connected to the kite, inspect the adapter and the kite’s inflation valve separately.

A little water with dishwashing liquid makes this easier. Apply it lightly around the hose fittings and outlet, then pump slowly. Growing bubbles show the exact leak point. Keep soapy water out of the pump barrel and away from the kite bladder valve, as residue can collect sand and grit.

The usual suspects are:

• a cracked or sun-hardened hose;
• a flattened, missing or perished O-ring;
• a loose twist-lock, push-fit or threaded adapter;
• a torn rubber flap or diaphragm in the pump’s one-way valve; and
• a damaged kite inflation valve or valve base.

That final point matters. If the air is escaping from the kite’s leading-edge valve rather than the pump, a new pump fitting will not fix it. Stop there and inspect the kite valve carefully.

What a kite pump valve actually does

Most modern high-volume kite pumps use a one-way system that allows air to travel into the kite but prevents it returning into the barrel between strokes. This makes pumping more efficient and helps the pressure gauge give a useful reading. Depending on the pump, the check valve may sit in the outlet port, inside the hose connection, or as a small rubber diaphragm beneath a retaining cap.

Some pumps have two hose ports. One is for inflation, often with the one-way function engaged. The other is for deflation, allowing air to move out of the kite quickly when packing down. Connecting the hose to the wrong port is more common than it sounds, particularly with a new pump or when rigging in a rush at the beach.

Hose fittings vary across brands and generations. A fitting can look close enough, click into place and still leak under pressure. Older kites may use a larger push-fit fitting, while newer systems can use bayonet, twist-lock, screw-on or proprietary adapters. Measure the hose internal diameter and compare the locking shape, not just the outside appearance.

Before you order a replacement part

Take the pump, hose and damaged component with you if possible. A clear photo beside a ruler can also help identify the fitting. Check whether the replacement is for the pump itself or for the kite valve. If the broken part is an adapter that stays attached to the hose, look for an adapter matched to both your hose and kite brand.

For an internal one-way valve, note the pump brand and model, plus where the valve sits. Pumps can look nearly identical while using different valve inserts, rubber flaps or retaining caps. Universal parts can work well for common hose sizes, but a genuine or model-specific part is usually the safer call when replacing an internal check valve.

Also inspect the rest of the setup before spending money. A new valve will not solve a hose that is split near the cuff, and a hose replacement is often better value than patching multiple small cracks. If the pump barrel is heavily scored, the piston seal is failing, or the gauge is damaged, it may be time for a complete pump rather than chasing individual parts.

How to replace kite pump valve parts

Start with a clean, dry work area. Sand is the enemy of seals, threads and rubber flaps. Rinse any salty gear with fresh water, let it dry fully and keep the small parts in a tray or shallow container so they do not disappear into the garage floor.

Replacing a hose-end adapter or fitting

Remove the old fitting according to its design. Some are threaded, others are held by a hose clamp, a retaining collar or a tight push-fit connection. Avoid cutting the hose unless it is already damaged and you have enough spare length to trim it cleanly.

Check the end of the hose for oval shaping, cracks or fraying. If it is sound, push or thread on the new fitting exactly as intended. Where an O-ring is supplied, seat it flat in its groove. Do not stretch it, twist it or force it under the edge of the fitting. A tiny amount of silicone-based lubricant can help an O-ring seat, but avoid petroleum products, which can attack some rubber compounds.

Replacing the internal non-return valve

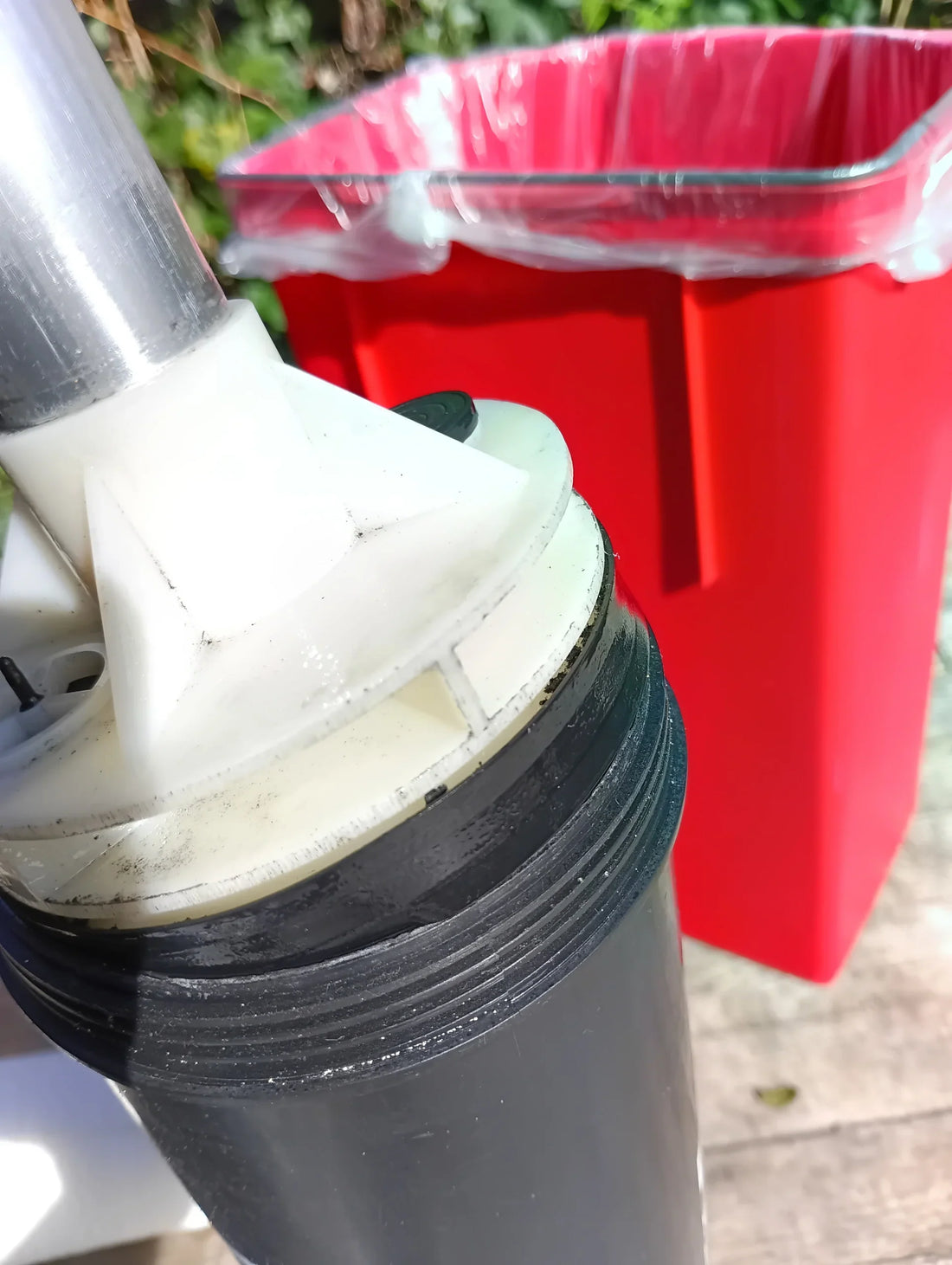

Remove the hose from the pump and locate the outlet cap or valve housing. Take a quick photo before pulling parts apart. Internal assemblies may contain a plastic insert, spring, diaphragm and seal, and their orientation matters.

Lift out the old valve carefully. If it is a rubber flap, check whether it has curled, torn or stiffened. Clean the valve seat with a dry cloth, removing salt crystals and fine sand without scratching the surface. Fit the replacement in the same direction as the original - air must flow from the pump into the hose, not back into the barrel.

Reassemble the housing hand-tight. Overtightening plastic threads can distort the seal or strip the cap. Once assembled, test the pump before taking it to the beach.

Test it properly before rigging

Connect the hose to the inflation port, block the adapter with your hand and make several slow strokes. You should feel resistance build, with no obvious air escaping around the outlet or hose connection. Release the handle and listen for air moving backwards through the pump. There should be little to none.

Then connect it to your kite and inflate gradually. Watch the gauge, but treat it as a guide rather than gospel - gauge accuracy can vary, especially on well-used pumps. Use the pressure printed on your kite or specified by its manufacturer. Overinflation can stress a bladder, valve base and leading edge, particularly after the kite has been sitting in the WA sun.

If a new fitting still leaks, do not keep forcing it. Stop and check that the adapter is fully locked, the hose is on the correct port and the O-ring is present. A mismatch between kite and fitting is more likely than a faulty new part.

Keep the pump working through another season

Pumps get treated like expendable beach gear, yet a quick rinse and a little care can add years to one. Rinse salt from the hose connections after a session, dry the pump before storing it, and keep it out of direct sun in the back of the ute. Do not drag the hose across sharp shells or bitumen, and avoid using the pump as a handle for carrying a fully inflated kite.

For hard-to-match legacy fittings, it helps to speak with people who have seen the older gear in the flesh. Action Sports WA carries a broad range of water-sports spares, including components for equipment going back years, and can help narrow down what will actually fit.

A pump that seals properly gets your kite to pressure faster, protects your energy for the water and removes one more variable from a windy day. Sort the small leak now, pack a spare adapter in your kite bag, and when the wind turns on, you will be ready to rig and ride. Let's go!

It is worth  noting currently we can only buy pump service kits for Ozone pumps.  It may also be worthy noting some parts may be suitable for other brand pumps as well as Ozone as most pumps are VERY similar in manufacture.

As always, give us a call ahead of time to ensure we have the parts in stock or can be ordered for you.

Team ASWA
