How to Tune Kite Lines for Better Sessions

A kite that constantly pulls left, turns like a bus or backstalls when you sheet in can ruin a perfectly good seabreeze session. Before blaming the kite, learn how to tune kite lines. A five-minute check can restore crisp steering, balanced power and proper depower - and it is one of the simplest bits of maintenance every kiter should know.

Kite lines stretch, especially when they are new, after a hard crash, or when one side has taken more load through loops and powered turns. Sand in the bar, worn pigtails, uneven extensions and a line wrapped around the bar can all create symptoms that feel like a tuning issue too. The aim is not to make every bar identical. The aim is to set your lines to the manufacturer’s intended geometry, then keep them there.

When kite lines need tuning

You do not need to tune your lines before every ride, but you should check them regularly and after anything unusual. A new bar and line set is worth checking after its first few sessions. The same goes for a kite that has been loaned out, a big tomahawk crash, a tangle, a line replacement or a bar that has been stored wet and salty.

On the water, the clues are usually obvious. Your kite may consistently turn harder in one direction, require a crooked bar to fly straight, or feel slow and vague through the steering. If it backstalls with the trim fully open and the bar only lightly sheeted in, the rear lines may be too short. If you need to pull the bar a long way before the kite responds, the rear lines may be too long relative to the front lines.

Do not diagnose tuning while riding severely overpowered, underpowered or in gusty, offshore wind. Conditions can imitate equipment faults. Check in steady wind, with the correct kite size and a clean, standard setup first.

How to tune kite lines safely

Start on dry, open ground with no one downwind of you. Disconnect the kite, rinse off heavy sand if needed, and fully unwind the lines. Run your fingers along them as you go. You are looking for knots, fuzzing, flat spots, cuts, exposed core or a section that feels noticeably thinner. Do not tune around damage. Retire a suspect line or replace it with the correct line type and length.

Set the trim system to its full-power position. On most bars, that means the depower strap is released or the cleat is set so the front lines are at their longest working setting. Push the bar all the way down to the chicken loop or trim stop, as it would sit when you want maximum power.

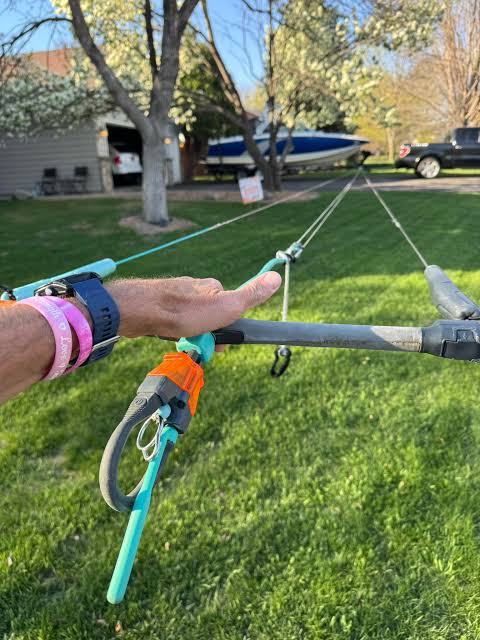

Secure the four flying lines to a fixed anchor at the same point. A strong post, purpose-built line anchor or another suitably solid attachment works well. Keep the lines separated, with no twists around each other, and walk the bar back under light, even tension. Never use a vehicle tow point or anything that could move unexpectedly.

With the bar centred and the trim open, compare where the lines finish. On many four-line systems, the two steering lines and two front lines should reach the anchor together under equal tension. If they do, your basic line length is good. If one line is clearly short or long, you have found the problem.

There is one big exception: follow the instructions for your specific bar and kite. Some single-front-line safety systems, high-Y split systems and bars with specific flag-out arrangements are designed with a deliberate difference in one front line. Do not force every line to match just because another brand’s bar does. The manufacturer’s setup diagram wins.

Check the safety system separately

Line tuning is only half the job. Reconnect the safety leash, simulate a release in a clear area and make sure the bar slides freely up the designated flag-out line. The kite must be able to flag correctly when the quick release is activated.

If the bar catches, the flag-out line is twisted, or the safety line is worn, stop there. A perfectly tuned kite is no use if the release system cannot do its job. Rinse and inspect the bar properly, particularly after Perth summer sessions where salt, fine sand and sun can be hard on moving parts.

Adjusting front and rear line differences

Most minor tuning happens at the pigtails where the flying lines connect to the kite. Moving to a different knot changes the effective line length without cutting anything. Start with the smallest adjustment available. A few centimetres can noticeably change how a modern kite feels.

If both rear lines are short, lengthen them equally using the adjustment knots at the kite or bar. This often fixes a kite that backstalls too readily or feels over-sheeted. If both rear lines are long, shorten them equally to bring back steering response and bar feel.

If the kite turns left with the bar centred, do not immediately shorten the right rear line. First confirm that the bar is centred, the lines are not twisted and both rear pigtails are set to the same knot. Once those basics are right, lengthen the left rear line slightly or shorten the right rear line slightly, depending on the adjustment options. Small, equal-looking changes can behave differently across brands, so test one change at a time.

Avoid making major adjustments to compensate for a worn line. If one steering line has stretched dramatically, replacing it is the safer answer. Also avoid mixing random extensions from different bars. Different diameters, materials and stitching can stretch at different rates, creating the same uneven feel you are trying to remove.

Test the kite before committing to the setting

After an adjustment, launch with an experienced helper where possible and fly the kite conservatively at the edge of the window. With the trim open, it should sit calmly, steer evenly and respond similarly through left and right turns. Sheet the bar in progressively. You want clean power delivery without the canopy folding backwards or the kite flying back through the window.

Then test depower. Sheet out and apply trim as normal. The kite should reduce power predictably while remaining controllable. If it still feels odd, land it and check the setup again rather than trying to solve it with more aggressive riding.

Remember that not every handling issue is line length. Soft leading-edge inflation, a bridled pulley that is jammed with sand, uneven bridle wear, damaged pulleys or a distorted canopy can all cause poor turning and drifting. If your lines check out but the problem remains, inspect the kite’s bridles against its factory layout and get it assessed before the next windy day.

Line care that keeps your tuning accurate

Good habits save time. Rinse your bar and lines with fresh water after salty sessions, especially if the quick release has been in the sand. Dry gear out of direct sun where possible, and avoid leaving lines tightly wound around a hot bar in the back of the ute for weeks.

When packing down, wind the lines evenly under light tension. Do not drag them across rough ground or stand on them while packing. Knots reduce line strength and alter effective length, so remove them carefully rather than pulling them tight. If you have a repeated knot in the same place, inspect that section closely for abrasion.

Keep matched line sets together. A 22-metre set paired with a stray 3-metre extension may get you out for a session, but it can alter turning speed, wind range and relaunch behaviour. That may be useful for a specific discipline, but it should be a deliberate setup choice, not an accident in the car park.

Know when to ask for a second set of eyes

If your bar has an unfamiliar safety system, your kite is older, or you are fitting replacement lines, getting expert help is smart. A shop technician can identify correct line specifications, pigtail compatibility and safety-line routing far faster than trial and error on a windy beach. Action Sports WA can also help track down hard-to-find replacement components for older gear.

A well-tuned kite should disappear from your thoughts once you are riding. Check it on the grass, test it gently, then get back to the good part: clean wind, clear water and a kite that does exactly what you ask.
